FEATURE

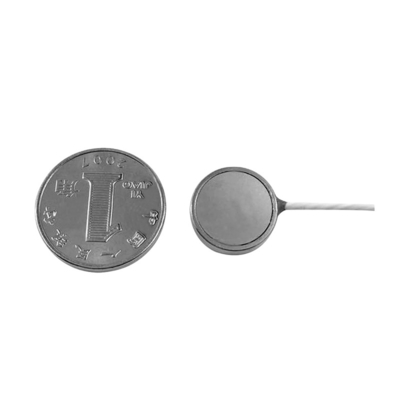

1. XJC-Y01-12.7 adopts high-precision resistance strain principle
2. Miniature load cell,Low profile
3. Made of stainless steel
4. Customizabble,IP66 protection
TECHNICAL PARAMETERS
|
Capacity |
5,10,20,50,100KG |
Material
|
Stainless steel |
|
Accuracy |
0.05% F.S. |
Rated output |
1.5±15%mV/V |
|
Recommended excitation |
5-10VDC |
Maximum excitation |
10V |
|
Natural frequency |
≥2KHZ |
Compensated temp range |
- 10 ~ 60 ºC |
|
Hysteresis |
0.05% F.S. |
Operating temp range |
- 20 ~ 80 ºC |
|
Repeatability
|
0.05% F.S. |
Insulation
|
≥5000MΩ/100VDC |
|
Input impedance |
350(700) ± 5 Ω |
Output impedance |
350( 700)± 5 Ω |
|
Creep (30min) |
0.05% F.S. |
Temp effect on output |
0.05% F.S. / 10ºC |
|
Zero balance |
± 2% F.S. |
Temp effect on zero |
0.05% F.S. / 10ºC |
|
Safe load limit |
150% |
Ultimate load limit |
500% |
|
Cable size |
∅5 x3m |
Life |
Full scale more than 1 million times
|
|
Wire connection |
Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White |
||
