Chinese low cost 3kg, 5kg kitchen scales weighing sensor micro load cell

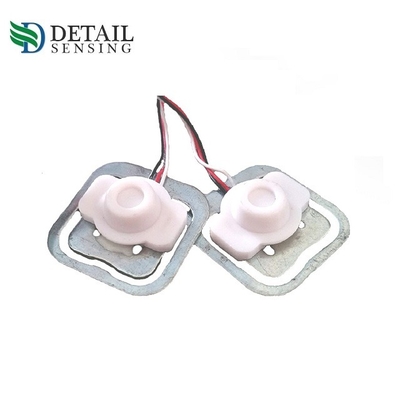

Description of micro load cell
Model: DLC928NB
Category: micro load cell
Range: 3kg,5kg
Dimension: 26*26*1mm
Material:alloy steel
Application: handle scale,kitchen scale,microfore test equipment
Characteristic: kitchen scale load cell, micro force load cell
Specification of micro load cell
Specification | |||
comprehensive error: | 0.05%FS | output resistance: | 1000±10Ω |
Rated output: | 3kg:0.75±0.2mv/v 5kg:1.25±0.2mv/v | Insulation resistance: | ≥2000MΩ(100VDC) |
Non-linearity: | 0.08%FS | Excitation voltage: | 3~10VDC |
Hysteresis: | 0.08%FS | compensated temp: | -10~+40℃ |
Repeatability: | 0.05%FS | use temperature: | -10~+55℃ |
Creep: | 0.1%FS/3min | temp effect on zero: | 0.5%FS/10℃ |
Zero balance: | ±0.5mv/v | Temp effect on span: | 0.1%FS/10℃ |
Input resistance: | 1000±10Ω | defend grade: | IP65 |
Price,Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
